Entity Relationship Diagrams (ERDs) for Oracle HCM Cloud/Fusion HCM

Are you missing the Entity Relationship Diagrams (ERDs) for Oracle HCM Cloud aka Fusion HCM? Here is my attempt to create them by module/business object.

Although these articles might not list all exhaustive list of tables, it lists the most frequently used list of tables and their relationships with the core tables.

Sample:

Element Entry ERD

Core HR Workforce Structures ERD:

https://fusionhcmknowledgebase.com/2020/12/core-hr-workforce-structures-table-relationships-erd/

Core HR Transactional Data ERD:

https://fusionhcmknowledgebase.com/2020/12/core-hr-table-relationships-for-hcm-cloud/

Payroll Element Entries ERD:

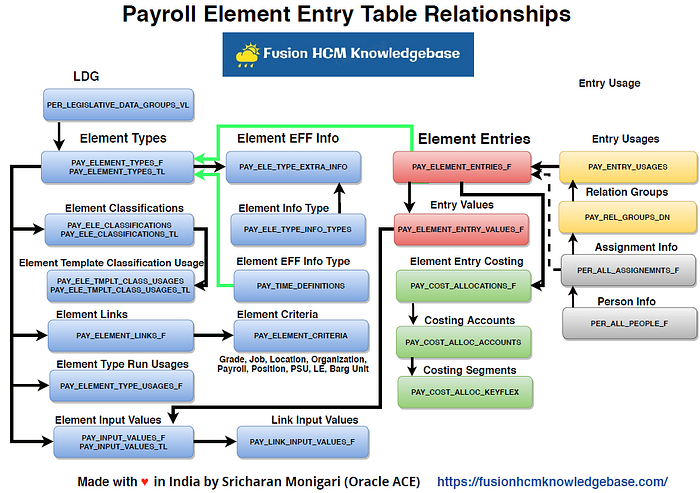

Payroll Element Entry Table Relationships ERD
